We Can Offer You Wide Variety Of Structural Steel For Your Regular Needs For Maintenance, Construction As Well As Development Of New Projects. With Tie Ups With Majority Of Manufactures We Can Offer Steel From Prime Manufacturers Like Sail/ Vizag / Jindal / Tisco As Well As From Secondary Rolling & Re Rolling Manufacturers. We Offer Following Product In Our Range Of Structural Steel:mild Steel Structural.

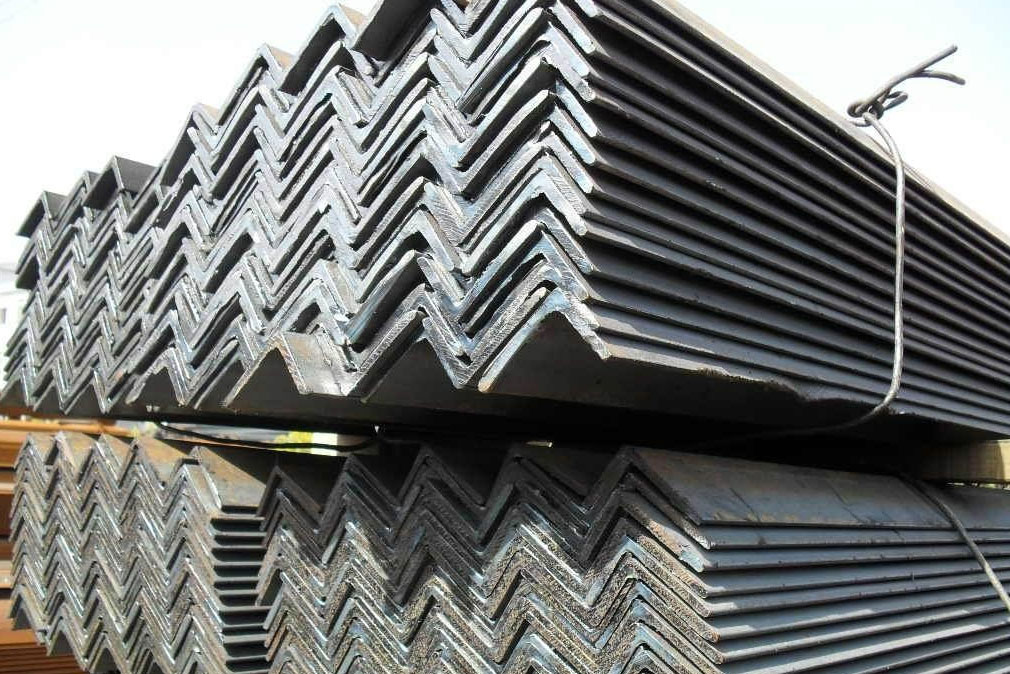

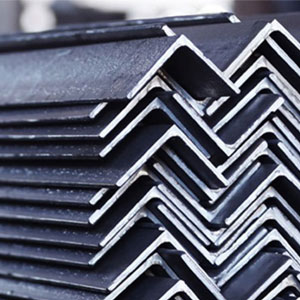

MS Angles
One of the most commonly used Steel Products in construction is MS Angles and we specialize in supplying Wholesale Mild steel Angles. We Supply Equal Angles, Unequal Angles and T Angles which are available in different thickness and dimensions.
| Grade | IS 2062 |
|---|---|
| Size | 20mm to 150mm, in Thk = 3mm to 12mm |
| Types | Equal Angle, Unequal Angle |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Product Range | The following are the sizes available. 25 x 25 x 3/5, 35 x 35 x 5, 40 x 40 x 5/6, 45 x 45 x 4/5/6, 50 x 50 x 5/6, 60 x 60 x 6/8, 65 x 65 x 6/8/10, 75 x 75 x 6/8/10, 80 x 80 x 6/8, 90 x 90 x 6/8/10,100 x 100 x 6/8/10/12, 110 x 110 x 8/10/12, 130 x 130 x 10/12, 150 x 150 x 10/12,150 x 150 x 16/20 200 x 200 x 16/20 All the above mentioned sizes are in mm. |
Equal Angle
| Size in mm | Weight Kg/M |
| Angles (equal) | |
| 50 X 50 X 6 | 4.5 |
| 65 X65X 6 | 5.8 |
| 65 X 65 X 8 | 7.7 |
| 65 X 65 X 10 | 9.4 |
| 75 X75X6 | 6.8 |
| 75 X75X 8 | 8.9 |
| 75 X 75 X 10 | 11.0 |
| 80 X 80 X 6 | 7.3 |
| 80 X 80 X 8 | 9.6 |
| 80 X 80 X 10 | 11.8 |
| 90 X 90 X 6 | 8.2 |
| 90 X 90 X 8 | 10.8 |
| 90 X 90 X 10 | 13.4 |
| 100 X 100 X 8 | 12.1 |
| 100 X 100 X 10 | 14.9 |
| 100 X 100 X 12 | 17.7 |
| 110 X 110 X 10 | 16.6 |
| 110 X 110 X 12 | 19.7 |
| 130 X 130 X 10 | 19.7 |
| 130 X 130 X 12 | 23.5 |
| 150 X 150 X 16 | 35.8 |
| 150 X 150 X 20 | 44.1 |
| 200 X 200 X 16 | 48.5 |
| 200 X 200 X 20 | 60.0 |
Unequal Angle
| mm | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 16 | 18 | 20 |
| 20 X 20 mm | 0.9 | 1.1 | |||||||||
| 25 X 25 mm | 1.1 | 1.4 | 1.8 | ||||||||
| 30 X 30 mm | 1.4 | 1.8 | 2.2 | ||||||||
| 35 X 35 mm | 1.6 | 2.1 | 2.6 | 3.0 | |||||||
| 40 X 40 mm | 1.8 | 2.4 | 3.0 | 3.5 | |||||||
| 45 X 45 mm | 2.1 | 2.7 | 3.4 | 4.0 | |||||||
| 50 X 50 mm | 2.3 | 3.0 | 3.8 | 4.5 | |||||||
| 55 X 55 mm | 3.3 | 4.1 | 4.9 | 6.4 | 7.9 | ||||||
| 60 X 60 mm | 3.70 | 4.5 | 5.4 | 7.0 | 8.6 | ||||||
| 65 X 65 mm | 4.0 | 4.9 | 5.8 | 7.7 | 9.4 | ||||||
| 70 X 70 mm | 5.3 | 6.3 | 8.3 | 10.2 | |||||||
| 75 X 75 mm | 5.7 | 6.8 | 8.9 | 11.0 | |||||||
| 45 X 30 mm | 1.7 | 2.2 | 2.8 | 3.3 | |||||||
| 75 X 50 mm | 4.7 | 5.6 | 7.4 | 9.0 | |||||||
| 90 X 60 mm | 6.8 | 8.9 | 11.0 | 13.0 | |||||||
| 100 X 75 mm | 8.0 | 10.5 | 13.0 | 15.4 | |||||||
| 125 x 75 mm | 9.2 | 12.1 | 14.9 | ||||||||
| 125 x 95 mm | 10.1 | 13.4 | 16.5 | 19.6 | |||||||
| 150 X 75 mm | 13.7 | 17.0 | 20.2 | ||||||||
| 150 X 115 mm | 16.3 | 20.1 | 34.0 | 31.4 | 31.4 | ||||||
| 200 X 100 mm | 22.9 | 27.3 | 35.8 | ||||||||
| 200 X 150 mm | 26.9 | 32.1 | 42.2 | 52.0 |

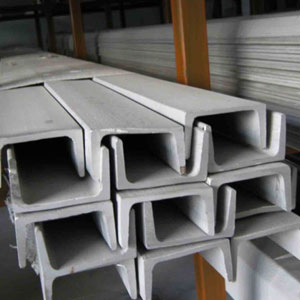

MS Channels
We are engaged in exporting of Mild Steel Channel, which is widely used as structural support in construction works. Available in different sizes and shapes, the MS Channels are Available in different sizes and shapes, the MS Channels are procured from reliable sources, which use high grade steel that adds anti-corrosion properties and high tensile strength to the finished range.We are rated among the leading MS Channels Exporters and Mild Steel U Channels Suppliers.
| Grade | IS 2062 |
|---|---|
| Size | 20mm to 500mm, in Thk = 3mm to 50mm |
| Types | U Channel, C Channel |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Product Range | The following are the sizes available. 75 x 40, 100 x 50, 125 x 75, 150 x 75, 175 x 75, 200 x 75, 250 x 80, 300 x 90, 350 x 100, 400 x 100. All the above mentioned sizes are in mm. |
Channel Section
| Designation | Size | Weight Kg/M |
| ISMC 75 | 75 X 40 X 4.8 | 7.14 |
| ISMC 100 | 100 X 50 X 5.0 | 9.56 |
| ISMC 125 | 125 X 65 X 5.3 | 13.1 |
| ISMC 150 | 150 X 75 X 5.7 | 16.8 |
| ISMC 175 | 175 X 75 X 6.0 | 19.6 |
| ISMC 200 | 200 X 75 X 6.2 | 22.3 |
| ISMC 225 | 225 X 80 X 6.5 | 26.1 |
| ISMC 250 | 250 X 80 X 7.2 | 30.6 |
| ISMC 300 | 300 X 90 X 7.8 | 36.3 |
| ISMC 350 | 350 X 100 X 8.3 | 42.7 |
| ISMC 400 | 400 X 100 X 8.8 | 50.1 |

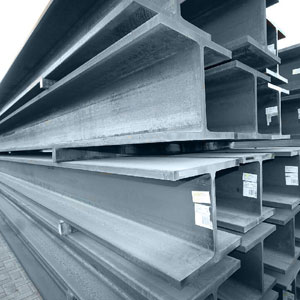

MS Beam
The Mild Steel Beams, which we offer, are extensively used for construction purposes for making steel-frames for buildings and bridges. MS Beams exported by us are highly durable and have high tensile strength. We are one of the most reliable M S Beams Suppliers. Our MS Beams are available in 2 types- Mild Steel H Beam and Mild Steel I Beam.
| Grade | IS 2062 |
|---|---|
| Shape | H/I |
| Product Range | The following are the sizes available. 100 x 50, 125 x 70,150 x 75, 175 x 85, 200 x 100, 250 x 125, 300 x 140, 350 x 140, 400 x 150, 450 x 150, 500 x 180, 600 x 210 All the above mentioned sizes are in mm. |
Beam Section
| Designation | Size | Weight Kg/M |
| ISMB 100 | 100 X 50 X 4.7 | 8.9 |
| ISMB 125 | 125 X 70 X 5.0 | 13.3 |
| ISMB 150 | 150 X 75 X 5.0 | 15 |
| ISMB 175 | 175 X 85 X 5.8 | 19.6 |
| ISMB 200 | 200 X 100 X 5.7 | 24.2 |
| ISMB 225 | 225 X 110 X 6.5 | 31.1 |
| ISMB 250 | 250 X 125 X 6.9 | 37.3 |
| ISMB 300 | 300 X 140 X 7.7 | 46 |
| ISMB 350 | 350 X 140 X 8.1 | 52.4 |
| ISMB 400 | 400 X 140 X 8.9 | 61.5 |
| ISMB 450 | 450 X 150 X 9.4 | 72.4 |
| ISMB 500 | 500 X 180 X 10.2 | 86.9 |
| ISMB 550 | 550 X 190 X 11.2 | 104 |
| ISMB 600 | 600 X 210 X 12.0 | 123 |

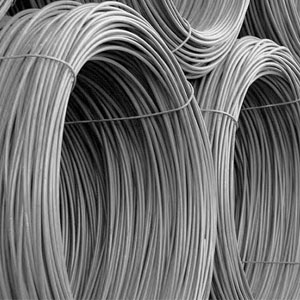

Wire Rods
It serves as the foundation for the wire drawing components. The wire rod can be used for a variety of purposes, such as wire ropes, springs, electrodes, steel reinforcement for aluminum conductors, wire mesh, fasteners, car parts, hardware, etc.
| Grade | Low Carbon - 5WR-14/IS:2062 Gr.A |
|---|---|
| Technique | Hot Rolled |
| Diameters (unit mm) | 5 mm to 250 mm |
|
All the above mentioned sizes are in mm These are available in straight lengths (as mutually agreed). |
|

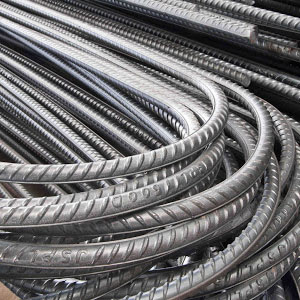

TMT Bars
TMT means Thermo Mechanical Treatment, which is a thermomechanical process; These TMT bars are generally used material in construction for enhanced protection against earthquake and another type of natural disasters.
To ensure safety for your structure TMT bars should be resistant to corrosion which helps to obtain a longer life to your structure.
| Diameter | 8-32mm |
|---|---|
| Grade | FE 415/ FE 500 |
| Material | Mild Steel |
| Usage/Application | Construction |
| Weight | As per requirement |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report |

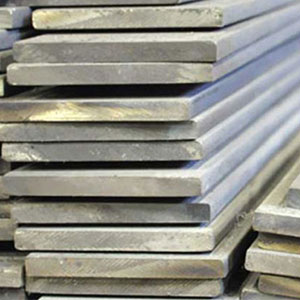

MS Flats
Mild Steel Flat Bars or MS Flat bars are basically thin strips of mild steel with varied thickness of the strip that are rolled in low temperature which imparts higher strength to the structure. MS Flats are considered to be the most basic of steel structures.
| Size | 21 x 6 mm to 300 x 16 mm |
|---|---|
| Material | Mild Steel |
| Bar Shape | Flat |
| Surface | Galvanised |
| Features | Made using high grade Mild Steel |
| Usage/Application | Industrial |

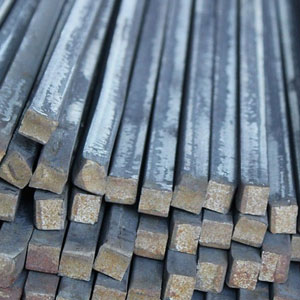

MS Square Bars
MS square bar is a hot rolled solid steel bar with range corners that's perfect for multitudinous applications like structural, fabrication, manufacturing and indeed repairs.
| Size | 10 x 10 mm to 63 x 63 mm |
|---|---|
| Material | Mild Steel |
| Bar Shape | Square |
| Surface | Galvanised |
| Features | Made using high grade Mild Steel |
| Usage/Application | Industrial |

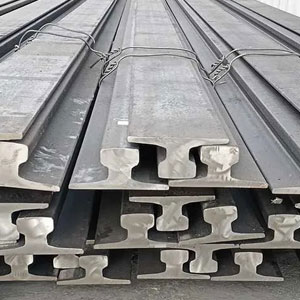

Rails
Crane rail is a specialty rail designed for carrying heavy loads and is used in a wide variety of applications. They are not the same as railway track rails. Unlike railway track rails, the base width of crane rails is always equal to the height of the rail. Moreover, heavier crane rails have a much thicker web than normal track rails. These Crane Rails mainly serve as tracks for high capacity lifting cranes including gantry cranes and overhead crane runways.
| Size | QU 70 / QU 100 / QU 80 / QU 120 |
|---|---|
| Grade | Industrial |
| Types | Crane Rail / QU70 Crane Rail / QU100 Crane Rail / Light Rail / QU80 Crane Rail / QU120 Crane Rail / Rail Clamp |
| Surface Treatment | Galvanised |
| Finishing | Coated |
| Usage/Application | Trolly, Gantry, Overhead Cranes, Railway Siding, Rail Pole |
