Pipes
Pipes Specification
| Pipes Specifications | ASTM A312, A358 / ASME SA312, SA358 |
|---|---|
| Dimensional specification | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| ASTM A312 SS Seamless Pipe Size | 1 / 2" NB - 16" NB |
| ASTM A312 SS Welded Pipe Size | 1 / 2" NB - 24" NB |
| ASTM A358 SS EFW Pipe Size | 6" NB - 24" NB |
| Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Pipes Manufacturing Shapes | Hydraulic, Round, Rectangle, Square, Hex, Honed |
| Pipe Manufacturing Techniques | Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded |
| Pipe Schedule Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| SS Pipes End Types | Plain End, Beveled End, Treaded One End, TBE (Treaded Both Ends) |
| Delivery Condition of SS Pipe | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Surface Finish | No.1, No.4, No.8 Mirror Finish, 2B |
| Value Added Services | Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing |
| Inspection and Test Reports | EN 10204 3.1, Mill Test Certificates, Chemical Reports, PMI Test Reports, Mechanical Reports, Third Party Inspection, NABL Approved Lab, Visual Inspection, Destructive Test and Non Destructive Test Reports |
| Marking | Specification Grade Nominal Pipe Sizes Pipe Schedule or Wall Thickness Manufacturing Method (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo - on request Marked Pipe Sample: ANSI B36.19 ASTM A 312 SS 12" NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Packing of Pipes | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be on request |
OD (mm) &WT (mm) of Pipes
| Product Description | Outside Diamter, OD (in mm) | Wall Thickness, WT (in mm)> |
|---|---|---|
| Round Pipe | 6mm – 630mm | 0.5mm-30mm |
| Square Pipe | 12.7mm* 12.7mm to 300mm* 300mm | 0.5mm-30mm |
| Rectangular Pipe | 10*20mm to 100*200mm | 0.5mm-30mm |
| Colour Coated Pipe | 6mm to 630mm | 0.5mm-30mm |
| Ornamental Pipes | 12.7mm to 76.2mm | 0.5mm-2.0mm |
| Electropolished Pipes | 12.7mm to 250mm | 0.5mm-30mm |
| Slot Round Pipe | 12.7mm to 76.2mm | 0.5mm-2.0mm |
| Triangle Pipe | 16mm to 85mm | 0.5mm-3.0mm |
| Hexagonal Pipes | 13mm to 85mm | 0.5mm-2.0mm |
| Thin-Wall Pipes | 22mm*0.7mm to 108mm*2.0mm | 0.5mm-2.0mm |
| Inner/Outside Polished Stainless Steel Pipes | 12.5mm to 203.2mm | 1.0mm – 5mm |
| Seamless Pipes | 6mm to 430mm | 0.8mm – 30mm |
Stainless Steel & Duplex Steel Pipe
Range : : 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.
Form : : Seamless / Erw / Welded in Round & Square .
Stainless Steel : ASTM / ASME SA 312 GR. TP 202, 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L . ASTM / ASME SA 358 CL 1 & CL 3 GR . 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316H , 321 , 321H , 347 .
Duplex Steel : ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Nickel Alloy
Range : : 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS"
Form : : Seamless / Erw / Welded in Round & Square.
Nickel Alloy : ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 ) ASTM / ASME SB 163 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 ) ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 ) ASTM / ASME SB 704/705 UNS 8825 INCONEL (825) ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 ) ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 ) ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625) ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276)

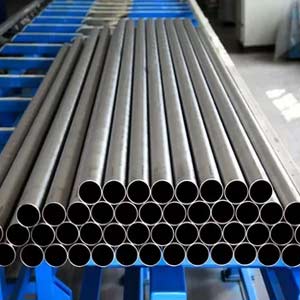

Hastelloy
Size : 1/2"NB to 12"NB
Grade : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Standard : Hastelloy Seamless Pipe Hastelloy ERW Pipe This range is used in : Petrochemicals Plants Oil Refineries Fertilizers Plants Sugar Mills Chemical Plants Pharmaceuticals Textile Machinery
Types : Seamless / Erw / Welded/ Fabricated

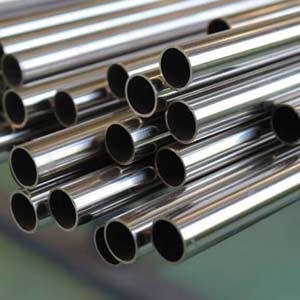

Inconel
Range : 15 NB up to 600 NB in SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Grade :Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Length : Single Random, Double Random & Cut Length
Types : Seamless / Erw / Welded/ Fabricated
Form : Round, Square, Rectangular, Hydraulic etc.
End : Plain End, Beveled End, Threaded

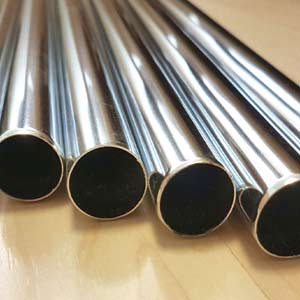

Incoloy
Grade : Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Standard :ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751
Types : Seamless / Erw / Welded/ Fabricated
This range is used in : Petrochemicals Plants, Oil Refineries, Fertilizers Plants, Sugar Mills, Chemical Plants, Pharmaceuticals, Textile Machinery

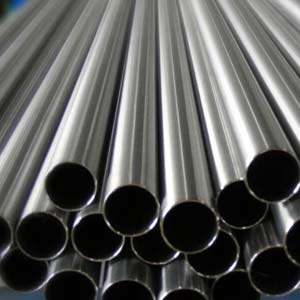

Monel
Size : 1/2"NB to 12"NB
Form :Round, Square, Rectangular, Hydraulic etc.
Grade :Monel 400
Types : Seamless / Erw / Welded/ Fabricated
Length : Single Random, Double Random & Cut Length
End : Plain End, Beveled End, Threaded

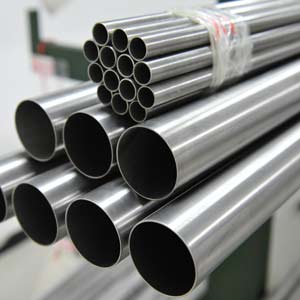

Titanium
Type : Seamless / Erw / Welded/ Fabricated
Grade :Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23
Range :15 NB UP TO 600 NB IN SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 etc.
Form : Round, square, rectangular, hydraulic etc. Length Single Random, Double Ranidom & Cut Length End Plain End, Bevelled End, Treaded

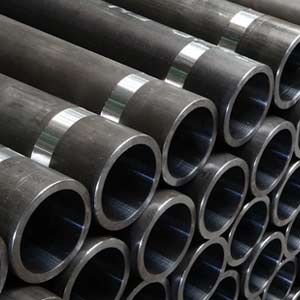

CARBON STEEL
Grade: ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L
Size : 1/8” NB TO 24” NB Sch 40/80/160/XXS
Form: Round, Square, Rectangular, Coil, U Tube
Type: Seamless / ERW / Welded
Length: Single Random, Double Random & Required Length

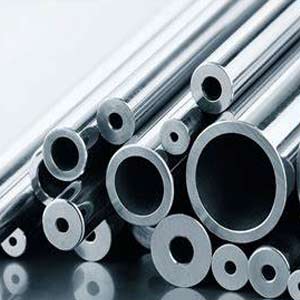

ALLOY STEEL
Grades: 95/5, 90/10 & 70/30
Size :3mm O.D to 75mm O.D. with wall thickness of 0.5 mm to 20 mm
Form: Round, Square, Rectangular, Coil, U Tube,
Type: Seamless / ERW / Welded
Length: As per customer’s requirement (Maximum upto 7 meters)

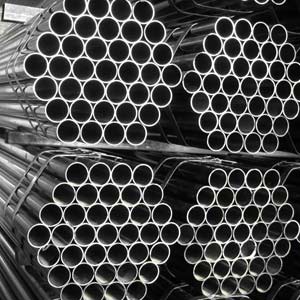

MILD STEEL PIPE ( MS Erw Pipe )
End: Plain End, Bevelled End
Size :15mm NB to 150mm NB (1/2” to 6”), 7″ (193.7mm OD to 20″ 508mm OD)
Form: Round, Square, Rectangular, Coil, U Tube,
Type: Seamless / ERW / Welded
Length: As per customer’s requirement (Maximum upto 7 meters)
SAW PIPES
Manufacturing Standard API 5L, ASTM A252, ASTM A53, EN10219, etc.
Range :16 inches to 120 inches (406 mm to 3048 mm)
Wall Thickness 6 mm to 40 mm
Grades : Carbon steel, alloy steel, stainless steel
Length: Typically 6 meters to 12 meters (custom lengths also available)
