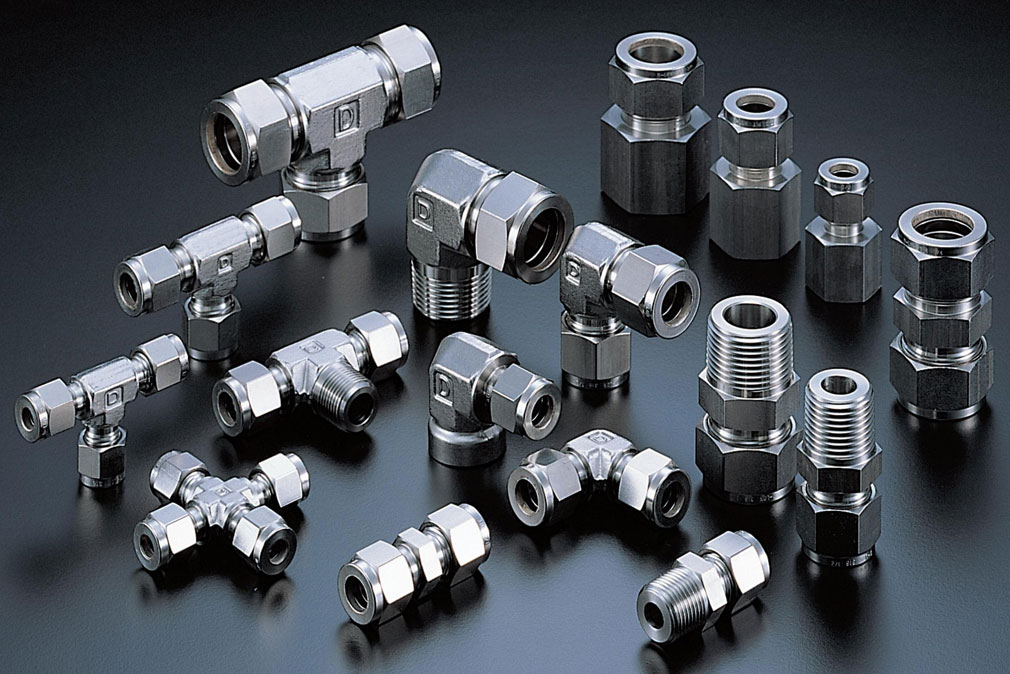

Ferrule Fittings
Vishvakarma Metal(India) manufactures of wide range of COMPRESSION TUBE FITTINGS, also known as FERRULE TUBE FITTINGS.The compression tube fittings are designed for process & instrumentation tubings.They provide leak proof seal that helps to withstand high pressure,vacuum,temperature & vibration.We manufacture compression tube as per international standards ASTM/ASME/DIN in Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloys, Copper and Brass with a wide range to meet our clients’ demand completely.
Specification :
| Types | Double Ferrule Type & Single Ferrule |
|---|---|
| Size Range | 1/16" Tube OD to 2° Tube OD |
| End Connection | OD/NPT/BSP/SW/BW |
| Material | SS 316/SS 304/CS/Monel / Brass |
| Pressure Rating | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
| Surface Finish | Polished Bright |
| Form | Male Connector,Male Pipe Weld Connector,Male Elbow,Male Adapter,Bulkhead Male Connector,Male Run Tee,Male Branch Tee,Female Connector,Female Pipe Weld Connector,Female Elbow,Female Adapter,Bulkhead Female Connector,Female Run Tee,Female Branch Tee,Ferrule Union,Ferrule Bulkhead Union,Ferrule Union Tee,Union Cross,Reducing Union,Elbow Union,Ferrule Reducer,Bulkhead Reducer,Tube Cap,Tube Plug,Ferrule Nut,Front Ferrule,Back Ferrule. |
Single Ferrule :
In the single ferrule fittings, the nose of the ferrule is utilized to fulfil two purposes. One is to bite into the tube to hold it, and the second is to provide a sealing part for the coupling body. Single ferrule fittings have a relatively less pressure rating as compared to their twin-ferruled equivalent. These ferrule fittings are manufactured by considering the operators’ demands and ease of use. It has one less part than double ferrule fittings, and also, it is usually hard to be installed inaccurately. Despite its advantages, double ferrule fittings are generally the preferred option over single ferrule fittings.
Double Ferrule :
The twin or double ferrule fittings has front ferrule and back ferrules. These ferrule fittings make a grip by the back ferrule and create a seal by the front ferrule. The double ferrule is also known as two-ferrule, which is available in different materials. The size of this type of ferrule fitting is the same as single ferrule fittings. Double ferrule fittings offer a perfect connection due to their sturdy mechanical grip design. This double ferrule fittings can be utilized for tubing purposes with different widths and varying hardness levels.
Form
Male Connector
Pipe Weld Connector
Bulk Head Male Connector

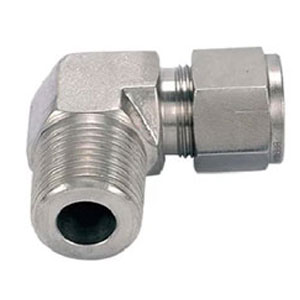

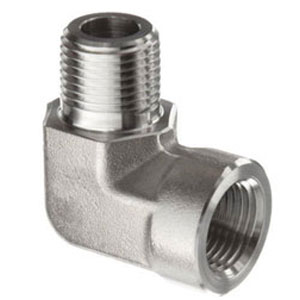

Male Elbow
Male Run Tees
Male Branch Tee
Female Connector
Bulk Head Female Connector
Female Elbow
Female Run Tee
Female Branch Tee

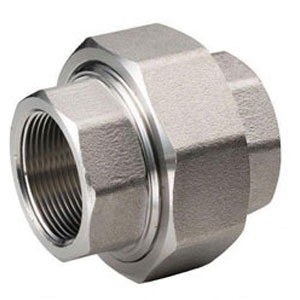

Union
Reducing Union
Bulk Head Union

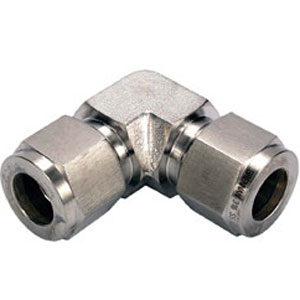

Union Elbow

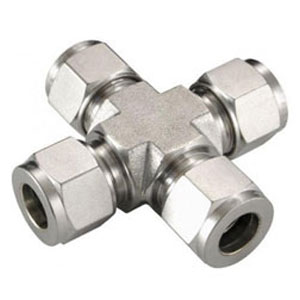

Union Cross
Tube Cap
Tube Plug
Male Adapter
Female Adapter
Front/Back Ferrule, Nut
Ferrule Tube Fittings Dimensions
| T-Tube O.D.(in.) | Basic Ordering Number | Dimension, mm | Intechanges with | ||||
| L | C | G | F | E | |||
| 1/16 | -TTT-S1 | 17.8 | 8.6 | 7.9 | 9.5 | 1.3 | -100-3 |
| 1/8 | -TTT-S2 | 22.4 | 12.7 | 11.1 | 9.5 | 2.3 | -200-3 |
| 3/16 | -TTT-S3 | 24.4 | 13.7 | 12.7 | 11.1 | 3.0 | -300-3 |
| 1/4 | -TTT-S4 | 26.9 | 15.2 | 14.3 | 12.7 | 4.8 | -400-3 |
| 5/16 | -TTT-S5 | 29.7 | 16.2 | 15.9 | 15.9 | 6.4 | -500-3 |
| 3/8 | -TTT-S6 | 30.5 | 16.8 | 17.5 | 15.9 | 7.1 | -600-3 |
| 1/2 | -TTT-S8 | 36.1 | 22.9 | 22.2 | 20.6 | 10.4 | -810-3 |
| 5/8 | -TTT-S10 | 38.9 | 24.4 | 25.4 | 25.4 | 12.7 | -1010-3 |
| 3/4 | -TTT-S12 | 39.9 | 24.4 | 28.6 | 27.0 | 15.7 | -1210-3 |
| 7/8 | -TTT-S14 | 44.7 | 25.7 | 31.8 | 34.9 | 18.3 | -1410-3 |
| 1 | -TTT-S16 | 49.0 | 31.2 | 38.1 | 34.9 | 22.4 | -1610-3 |
| 1 1/8 | -TTT-S18 | 55.1 | 31.2 | 46.0 | 42.9 | 24.6 | -1810-3 |
| 1 1/4 | -TTT-S20 | 66.5 | 41.1 | 47.6 | 42.9 | 27.7 | -2000-3 |
| 1 1/2 | -TTT-S24 | 78.0 | 50.0 | 57.2 | 50.8 | 34.0 | -2400-3 |
Hydraulic Ferrule Tube Fittings Outer Diameter
| OD | OD Actual | Thread Designation - Normal Size | Thread per inch | |
| (fraction inch) | (inches) | (inches) | NPT | BSP |
| 5/16 | 0.3125 | 1/16 | 27 | 28 |
| 13/32 | 0.405 | 1/8 | 27 | 28 |
| 35/64 | 0.540 | 1/4 | 18 | 19 |
| 43/64 | 0.675 | 3/8 | 18 | 19 |
| 27/32 | 0.840 | 1/2 | 14 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 | 11 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 | 11 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 | 11 |
| 2-3/8 | 2.375 | 2 | 8 | 11 |
| 3-1/2 | 3.5 | 3 | 8 | 11 |
| 4 | 4.0 | 3-1/2 | 8 | 11 |
| 4-1/2 | 4.5 | 4 | 8 | 11 |
| 5-5/8 | 5.563 | 5 | 8 | 11 |
| 6-5/8 | 6-5/8 | 6 | 8 | 11 |
S. S. Instrumental

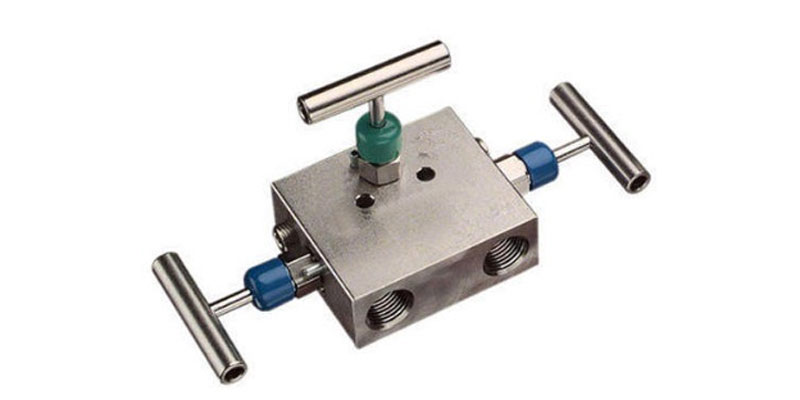

Manifold Valve :
Manufactured and designed a wide variety of Manifold Valves as per the international quality standards. Our range of manifold valves includes 2 way and 3 way manifold valves. Made with stainless steel, carbon steel and duplex stainless steel materials, manifold valves are easy to install and maintain. We offer manifold valves in various dimensions and specifications. These valves find their application in various industries like chemical, petrochemical, oil etc., and can be customized as per the need of the bulk buyers.
Designed For
- 1. Direct Mounting On Connecting System
- 2. Direct Mounting On Impulse Lines
- 3. Direct Mounting On Transmitters
Manufacturing process
- 1. Barstock
- 2. Forged
| Design | Two Way, Three Way, Five Way, Manifold Straight & 'T' Type & 'H' Type |
|---|---|
| End Connection | NPT/BSP/Flange (1/8" to 1") |
| Material | SS316/SS304/CS/Brass/Monel |
| Pressure Rating | 10,000 psig |

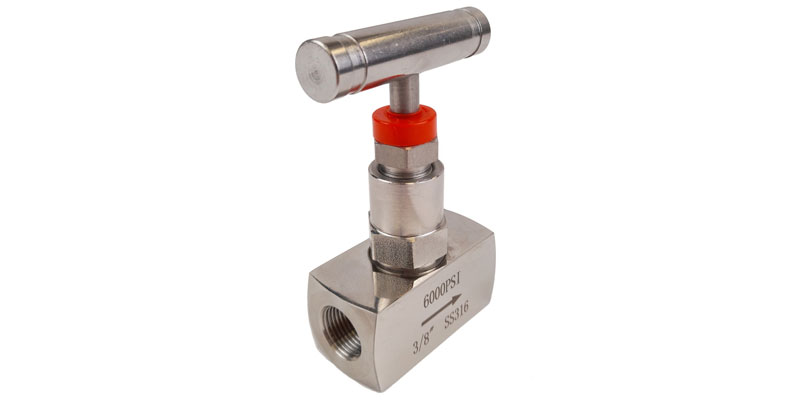

Needle Valve :
Manufactured and offered a quality range of Needle Valves, which has in forged or bar stock body construction straight or angle pattern. This Needle Valve is available with panel mounting option such as union bonnet, screwed bonnet, and integral bonnet.
| Size | 1/8" to 1" |
|---|---|
| Connection | Double Ferrules Tube, NPT, BSP, BSPT, thread male/female |
| Material | Stainless Steel of all grades, Monel, Brass, C.S. etc. |
| Pressure Rating | 10,000 psi |

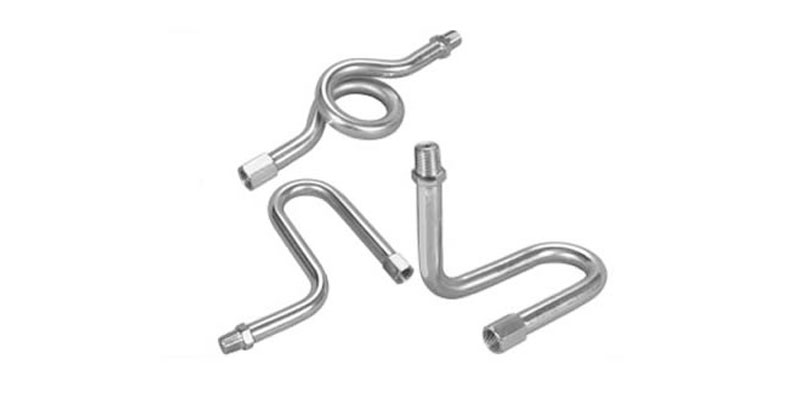

Syphon Tube :
Manufactured and designed to protect instruments from higher temperature & direct contact of live medium with instruments. We produce pigtail steam Syphon Tubes in carbon steel, stainless steel & alloy steel with butt weld or threaded ports. Syphon Tubes can be obtained in standard and customized configurations from us.
| Types | Stainless Steel 304 & 316 Gr. in U type, Trumpet Type (Pigtail & Coil Type) |
|---|---|
| Tube Length | 3 Meter, 6 Meter or as required |
| End Connection | SW, BW, Screwed, NPT, BSP, Male/ Female Threaded, Swivel type. |
| Application | Connected between the pressure gauge & process in applications where high temperature above 65 Deg C for e.g., stream. These Syphon Tubes acts as a cooling coil and protects the gauge from high temperature vapors |
